57 CN Series 50pin Solder Connector Female 14pin 24pin 36pin Centronic Connector

Name: 57 CN Series 50pin Solder Connector Female 14pin 24pin 36pin Centronic Connector
Brand: FUYCONN
Price: 1 USD

Quality 57 CN Series 50pin Solder Connector Female 14pin 24pin 36pin Centronic Connector for sale

Place of Origin : China

Brand Name : FUYCONN

Certification : UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004

Model Number : FUY57023

MOQ : 10pcs

Price : Negotiable

Packaging Details : Vacuum Tray + Carton

Delivery Time : 7-10 days

Payment Terms : T/T or Paypal

Supply Ability : 1 million/ month

Product Name : Centronics Solder Connector

Product Line : 57 Series Connector

Color : Black or Blue

Pitch : 2.16mm

Number Of Terminal : 50pin 36pin 24pin 14Pin

Gender : Female connector

Contact Material : Phosphore Bronze

Insulator Material : PBT

Contact Now

Solder Easy Type Male 50 Pin Centronics Connector 25 Pairs Plug

57 CN Series 50pin Solder Connector Female 14pin 24pin 36pin Centronic Connector

Detail Description

Product Category: Centronic connector
Product Line: Champ Connector
Type: Centronic Solder Connector
Number of Terminal: 50 36 24 14 pin
Connector Style:Receptacle
Gender: Female
Centerline = 2.16mm [0.085in]
Insulator Color: Black or Blue
Insulator Type: Easy and Soft connection
Insulator Material: PBT
Contact pin Material: Brass
Shield Plating: Nickel
Mounting Option: Riveting

Common Features

Designed for Cable-to-cable and cable-to-PC Board applications
Board Application
Terminal Option with various types
Connector and hood sold as complete assembly
Avilable in low profile hood style
Metal shell provides grounding and shielding capability
Mates with industry compatible connector

Product Features

Product Type:	Centronics Solder Connector
Product Line:	Champ Connector
Gender:	Female
Connector Style:	Receptacle
Certerline :	2.16mm(0.85in)
Number of Position:	50 36 24 14pin
Contact Plating:	Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U")
Insulator Color:	Black or Blue
Shielded:	Yes
Orientation:	Parllel Lines
Mating connector lock:	Screwlocks

Materials

Contact Material:	Brass
Insulator:	PBT (UL 94-V0)
Shell	Nickel Plated Steel

Electrical Character

Current Rating:	5Amp
Withstanding Voltage:	AC 1000v r.m.s
Insulation Resistance:	1000 Megohms Minimum at DC 500V
Contact Resistance:	25M∩ Max Mated
Operation Temperature:	-55°C to +105°C

Application

1, VDSL Teleccom Equipment
2, Computer Peripherals
3, Communication Equipment
4, RJ21 Cable
5, Cable to Panel
6, Cable to cable
7, Computer terminal
8, Telemetering
9, Test Equipment
10, Printer

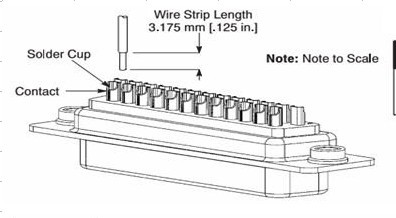

Technology Parameters

57 CN Series 50pin Solder Connector Female 14pin 24pin 36pin Centronic Connector
